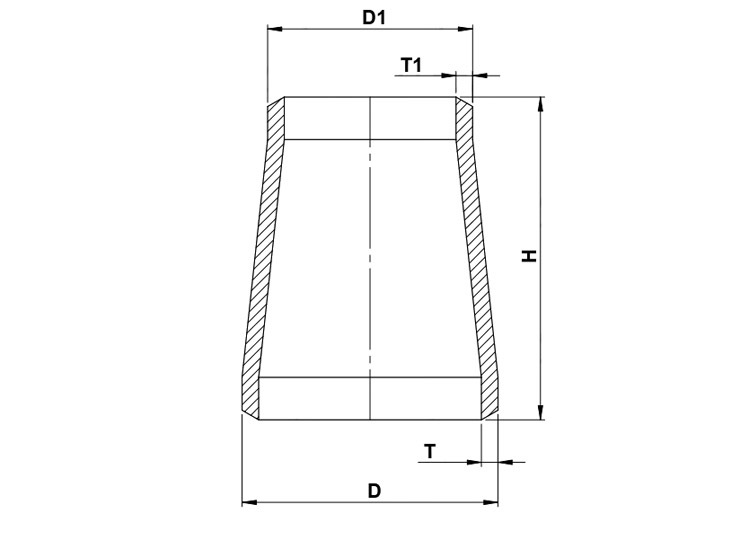

Riduzione Concentrica a Saldare Seamless WP-S – ANSI
Gradi Disponibili: AISI 304L – AISI 316L
Tabella Misure
| GAS | SCH | D | D1 | H | T | T1 | STOCK | ||
| 3/4″x1/2″ | 10s | 26,67 | 21,34 | 38,1 | 2,11 | 2,11 | • | ||
| 40s | 2,87 | 2,77 | • | ||||||
| 1″x1/2″ | 10s | 33,4 | 21,34 | 50,8 | 2,77 | 2,11 | • | ||
| 40s | 3,38 | 2,77 | • | ||||||
| 1″x3/4″ | 10s | 33,4 | 26,67 | 50,8 | 2,77 | 2,11 | • | ||
| 40s | 3,38 | 2,87 | • | ||||||
| 1″1/4×1/2″ | 10s | 42,16 | 21,34 | 50,8 | 2,77 | 2,11 | • | ||
| 40s | 3,56 | 2,77 | • | ||||||
| 1″1/4×3/4″ | 10s | 42,16 | 26,67 | 50,8 | 2,77 | 2,11 | • | ||
| 40s | 3,56 | 2,87 | • | ||||||
| 1″1/4×1″ | 10s | 42,16 | 33,4 | 50,8 | 2,77 | 2,77 | • | ||
| 40s | 3,56 | 3,38 | • | ||||||
| 1″1/2×3/4″ | 10s | 48,26 | 26,67 | 63,5 | 2,77 | 2,11 | • | ||
| 40s | 3,68 | 2,87 | • | ||||||
| 1″1/2×1″ | 10s | 48,26 | 33,4 | 63,5 | 2,77 | 2,77 | • | ||
| 40s | 3,68 | 3,38 | • | ||||||
| 1″1/2×1″1/4 | 10s | 48,26 | 42,16 | 63,5 | 2,77 | 2,77 | • | ||
| 40s | 3,68 | 3,56 | • | ||||||
| 2″x1″ | 10s | 60,33 | 33,4 | 76,2 | 2,77 | 2,77 | • | ||
| 40s | 3,91 | 3,38 | • | ||||||
| 2″x1″1/4 | 10s | 60,33 | 42,16 | 76,2 | 2,77 | 2,77 | • | ||
| 40s | 3,91 | 3,56 | • | ||||||
| 2″x1″1/2 | 10s | 60,33 | 48,26 | 76,2 | 2,77 | 2,77 | • | ||
| 40s | 3,91 | 3,68 | • | ||||||
| 2″1/2×1″1/4 | 10s | 73,03 | 42,16 | 88,9 | 3,05 | 2,77 | • | ||
| 40s | 5,16 | 3,56 | • | ||||||
| 2″1/2×1″1/2 | 10s | 73,03 | 48,26 | 88,9 | 3,05 | 2,77 | • | ||
| 40s | 5,16 | 3,68 | • | ||||||
| 2″1/2×2″ | 10s | 73,03 | 60,33 | 88,9 | 3,05 | 2,77 | • | ||
| 40s | 5,16 | 3,91 | • | ||||||
| 3″x1″1/2 | 10s | 88,9 | 48,26 | 88,9 | 3,05 | 2,77 | • | ||
| 40s | 5,49 | 3,68 | • | ||||||
| 3″x2″ | 10s | 88,9 | 60,33 | 88,9 | 3,05 | 2,77 | • | ||
| 40s | 5,49 | 3,91 | • | ||||||
| 3″x2″1/2 | 10s | 88,9 | 73,03 | 88,9 | 3,05 | 3,05 | • | ||
| 40s | 5,49 | 5,16 | • | ||||||
| 3″1/2×2″ | 10s | 101,6 | 60,33 | 101,6 | 3,05 | 2,77 | • | ||
| 40s | 5,74 | 3,91 | • | ||||||
| 3″1/2×2″1/2 | 10s | 101,6 | 73,03 | 101,6 | 3,05 | 3,05 | • | ||
| 40s | 5,74 | 5,16 | • | ||||||
| 3″1/2×3″ | 10s | 101,6 | 88,9 | 101,6 | 3,05 | 3,05 | • | ||
| 40s | 5,74 | 5,49 | • | ||||||
| 4″x2″1/2 | 10s | 114,3 | 73,03 | 101,6 | 3,05 | 3,05 | • | ||
| 40s | 6,02 | 5,16 | • | ||||||
| 4″x3″ | 10s | 114,3 | 88,9 | 101,6 | 3,05 | 3,05 | • | ||
| 40s | 6,02 | 5,49 | • | ||||||
| 4″x3″1/2 | 10s | 114,3 | 101,6 | 101,6 | 3,05 | 3,05 | • | ||
| 40s | 6,02 | 5,74 | • | ||||||
| 5″x3″ | 10s | 141,3 | 88,9 | 127,0 | 3,4 | 3,05 | • | ||
| 40s | 6,55 | 5,49 | • | ||||||
| 5″x3″1/2 | 10s | 141,3 | 101,6 | 127,0 | 3,4 | 3,05 | • | ||
| 40s | 6,55 | 5,74 | • | ||||||
| 5″x4″ | 10s | 141,3 | 114,3 | 127,0 | 3,4 | 3,05 | • | ||
| 40s | 6,55 | 6,02 | • | ||||||
| 6″x3″1/2 | 10s | 168,3 | 101,6 | 130,7 | 3,4 | 3,05 | • | ||
| 40s | 7,11 | 5,74 | • | ||||||
| 6″x4″ | 10s | 168,3 | 114,3 | 130,7 | 3,4 | 3,05 | • | ||
| 40s | 7,11 | 6,02 | • | ||||||
| 6″x5″ | 10s | 168,3 | 141,3 | 130,7 | 3,4 | 3,4 | • | ||
| 40s | 7,11 | 6,55 | • | ||||||
| 8″x4″ | 10s | 219,08 | 114,3 | 152,4 | 3,4 | 3,05 | • | ||
| 40s | 8,18 | 6,02 | • | ||||||
| 8″x5″ | 10s | 219,08 | 141,3 | 152,4 | 3,4 | 3,4 | • | ||
| 40s | 8,18 | 6,55 | • | ||||||
| 8″x6″ | 10s | 219,08 | 168,3 | 152,4 | 3,4 | 3,4 | • | ||
| 40s | 8,18 | 7,11 | • |
